Large Size Video Measuring Machine

Model No.: CNC3020J

Brand: DEXUN

Certification: Reach, Scoc

Support Customization: Odm, Obm

Place Of Origin: China

Measurement: 300*200*180

Overall Dimensions: 580*680*980

Weight: 240kg

A fully automatic video Measuring Instrument, which is an advanced stage of image measurement technology, is highly intelligent and automatic. The performance of its software and hardware makes the coordinate size measurement convenient, fast, and comfortable. It has an automatic learning function based on machine vision and process control.

Relying on the high-speed and accurate micrometer-level displacement of digital instruments, it can self-learn and memorize the path of the measurement process, focusing, point selection, function switching, manual correction, light matching, and other operating processes. The full-automatic image measuring instrument can easily learn all the operator's practical operation processes, and achieve artificial intelligence by combining its automatic focusing, area search, target locking, edge extraction, and fuzzy operation of rational matching points. It can automatically correct the deviation caused by workpiece difference and displacement difference, and achieve accurate point selection, with high precision repeatability. Thus, the operators can be freed from the monotonous operations such as accurate visual alignment, frequent point selection, repeated displacement, function switching, and increasingly heavy tasks to be tested, and improve the efficiency of workpiece batch testing hundreds of times to meet the needs of industrial sampling inspection and mass testing.

Fully automaticVision Measuring Machine

Application Area

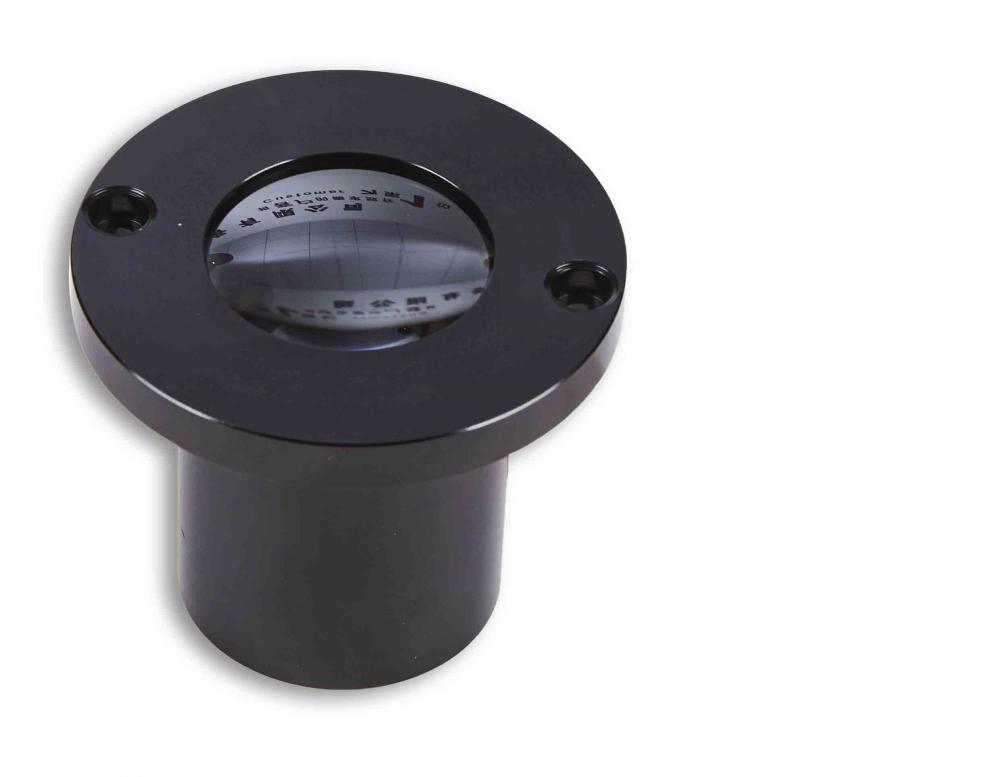

POMEAS micro-focus zoomlens

The definition, fineness, anti-interference ability and transmission speed are perfect

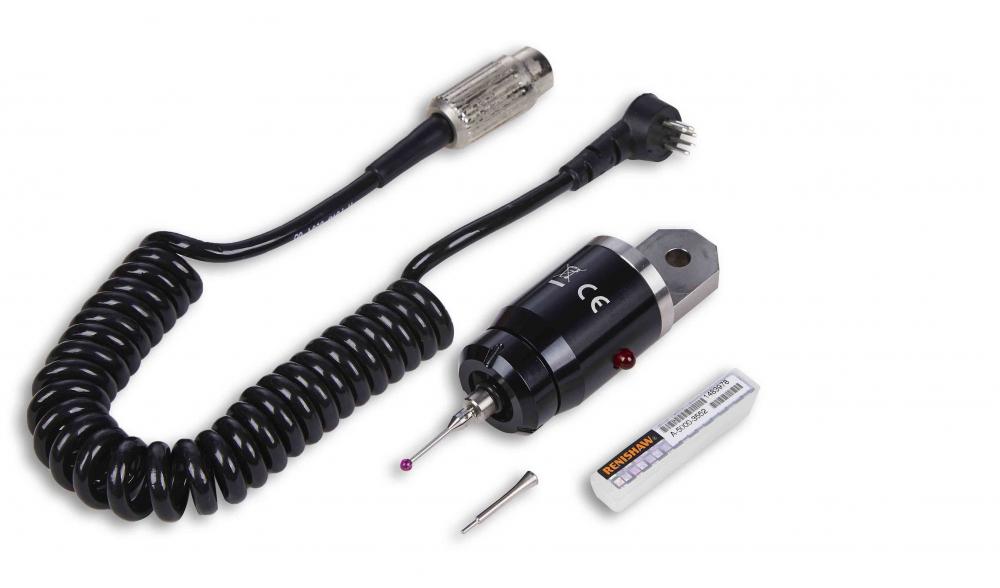

Renishaw 3D MCP, UK
Long service life and high accuracy

Product Introduction

FY-VPARALLEL

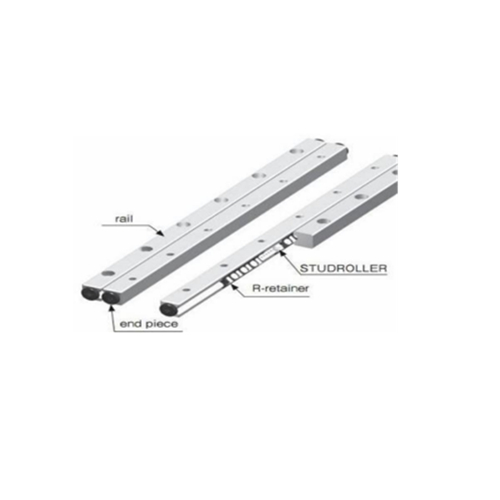

PRECISION BALLCROSS GUIDE

Customer Training Cases

Notice to buyers

01. About specifications

There are a variety of products and

specifications. Buyers can directly contact customer service personnel for consultation

02. About logistics

Due to the different sizes and weights of the

products, the delivery methods are also different. Generally, the most appropriate delivery method is arranged according to the area where the

customer lives.if you nave special requirements, please contact our customer service in advance for confirmation.

03. About after-sales

All products are subject to strict ex-factory inspection. if there are after-sales problems

please contact our customer service or the person in charge of our company at the first time

CNCis a series of Gantry CNC video measuring machines, which arespeciallydesigned for large size measurement. The largest measurement range can reach400×500mm, and can be applied in the industries of PCB, LCD, sheet metal, civil aviation and space industries, etc. VMG integrates the industry’s most advanced design concepts. The accuracy and stability of the machine can be ensured well on account of the most perfect design and strict controls during production.

Instrument characteristics：

1.Moving bridgestructure,Automatic large volume measurement, four-axis CNC control.

3.Easily operated with mouse and joystick.

4.SIPOINlinear scales with high accuracy and stability.

5.World’s leadingoptical lens for programmable zoom measurement.

6.Programmable surface light (5rings 8 octants, 48 sectors), LED profile light.

7.Automatic focus for height measurement. Touch probe can be added on demand.

8.PowerfulZONSON2DCNC metrology software.

9.Provide various standard configurations, customized versions are also available on demanded.

It can test the geometric element, including point, line, circle, arc, spline, ellipse, rectangle, slot, ring circle ,gap, distance, point list, etc.
